FingerClock 5
LCD VGA 8" 800 x 600 TFT 65536 colors Display with white led back-light
Capacitive Touch-screen with 3.5 mm glass protection resistant to vandalism
Keyboard with 18 keys
Two RGB multi-color semaphore
Polyphonic stereo audio
Build-in 2 x RFID 125 Khz and 2 x 13.56 Mhz reader Mifare/NFC
Build-in biometric optical reader
DDR3 32bits 1Gbyte
800MHz 2 x Cortex A8 CPU
High precision temperature-compensated real time clock
Linux operating system
10-100 Auto-MDIX Ethernet
2 x USB 2.0 port
Three serial communication ports RS232/485
Two internal relays
2 digital inputs
Internal UMTS dongle
Internal WiFi dongle
External USB plug for pen-drive
PoE and direct 240 Vac
Size W H D 210 x 230 x 80
Download brochure

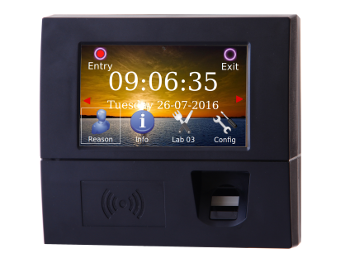

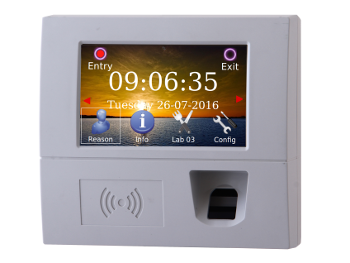

FingerClock 4P Biometric
LCD VGA 480 x 800 TFT 65536 colors Display with white led back-light
Touch-screen
Polyphonic stereo audio
Build-in 2 x RFID 125 Khz and 2 x 13.56 Mhz reader Mifare/NFC
Build-in biometric optical reader
DDR3 32bits 1Gbyte
800MHz 2 x CortexA8 CPU
High precision temperature-compensated real time clock
Linux operating system
10-100 Auto-MDIX Ethernet
2 x USB 2.0 port
Three serial communication ports RS232/485
Two internal relays
2 digital inputs
Internal UMTS dongle
Internal WiFi dongle
External USB plug for pen-drive
PoE Power supply or 9-36 Vdc with ext, adapter
Size W H D 165 x 158 x 60
Download brochure

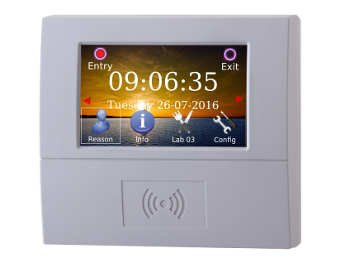

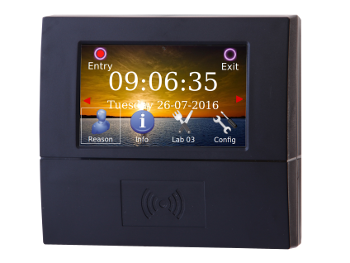

FingerClock 4P RFID Mifare
LCD VGA 480 x 800 TFT 65536 colors Display with white led back-light
Touch-screen
Polyphonic stereo audio
Build-in 2 x RFID 125 Khz and 2 x 13.56 Mhz reader Mifare/NFC
DDR3 32bits 1Gbyte
800MHz 2 x CortexA8 CPU
High precision temperature-compensated real time clock
Linux operating system
10-100 Auto-MDIX Ethernet
2 x USB 2.0 port
Three serial communication ports RS232/485
Two internal relays
2 digital inputs
Internal UMTS dongle
Internal WiFi dongle
External USB plug for pen-drive
PoE Power supply or 9-36 Vdc with ext, adapter
Size W H D 165 x 158 x 60

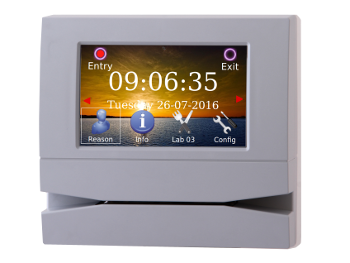

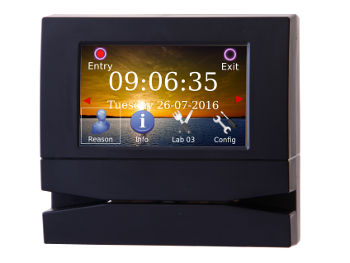

FingerClock 4P Magnetico
LCD VGA 480 x 800 TFT 65536 colors Display with white led back-light
Touch-screen
Polyphonic stereo audio
Build-in 2 x RFID 125 Khz and 2 x 13.56 Mhz reader Mifare/NFC and
Magnetic reader
DDR3 32bits 1Gbyte
800MHz 2 x CortexA8 CPU
High precision temperature-compensated real time clock
Linux operating system
10-100 Auto-MDIX Ethernet
2 x USB 2.0 port
Three serial communication ports RS232/485
Two internal relays
2 digital inputs
Internal UMTS dongle
Internal WiFi dongle
External USB plug for pen-drive
PoE Power supply or 9-36 Vdc with ext, adapter
Size W H D 165 x 158 x 60

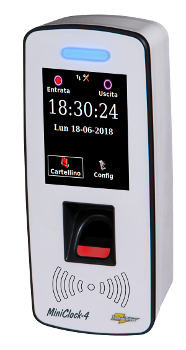

MiniClock-4 Biometric Rfid Mifare
LCD 240 x 320 TFT 65536 colors Display with white led back-light
Touch-screen
RGB multi-color semaphore
Monotone buzzer
Build-in RFID 125 Khz or 13.56 Mhz reader Mifare/NFC
Build-in biometric optical reader
DDR3 32bits 1Gbyte
800MHz 2 x Cortex A8 CPU
High precision temperature-compensated real time clock
Linux operating system
10-100 Auto-MDIX Ethernet
2 x USB 2.0 port
Serial communication ports RS485
2 internal relays
2 digital inputs
Internal WiFi slave and Hot Spot
PoE Power supply or 9-36 Vdc with ext, adapter
Size 72 x 178 x 45 W x H x D
Download brochure

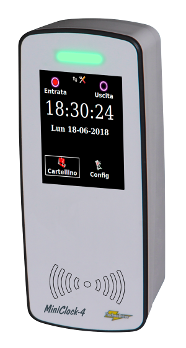

MiniClock-4 Rfid Mifare
LCD 240 x 320 TFT 65536 colors Display with white led back-light
Touch-screen
RGB multi-color semaphore
Monotone buzzer
Build-in RFID 125 Khz or 13.56 Mhz reader Mifare/NFC
DDR3 32bits 1Gbyte
800MHz 2 x Cortex A8 CPU
High precision temperature-compensated real time clock
Linux operating system
10-100 Auto-MDIX Ethernet
2 x USB 2.0 port
Serial communication ports RS485
2 internal relays
2 digital inputs
Internal WiFi slave and Hot Spot
PoE Power supply or 9-36 Vdc with ext, adapter
Size 72 x 178 x 45 W x H x D
Download brochure
MBR18 Rfid Mifare
RGB multi-color semaphore
Touch-button
Monotone buzzer
Build-in RFID 125 Khz or 13.56 Mhz reader Mifare/NFC
DDR3 512 Mbyte memory
800 Mhz Cortex A8 CPU
High precision temperature-compensated real time clock
Linux operating system
10-100 Auto-MDIX Ethernet
Serial communication ports RS485
1 internal relay 1A@32Vdc
1 digital inputs
WiFi / BLE 5.0
PoE Power supply or 9-36 Vdc with ext, adapter
Download brochure
MBR18 Bio Rfid Mifare
RGB multi-color semaphore
Touch-button
Monotone buzzer
Build-in RFID 125 Khz or 13.56 Mhz reader Mifare/NFC
DDR3 512 Mbyte memory
800 Mhz Cortex A8 CPU
High precision temperature-compensated real time clock
Linux operating system
10-100 Auto-MDIX Ethernet
Serial communication ports RS485
1 internal relay 1A@32Vdc
1 digital inputs
WiFi / BLE 5.0
PoE Power supply or 9-36 Vdc with ext, adapter
Download brochure
MBR21 Rfid Mifare
RGB multi-color semaphore
Keyboard 13 keys
Monotone buzzer
Build-in RFID 125 Khz or 13.56 Mhz reader Mifare/NFC
DDR3 512 Mbyte memory
800 Mhz Cortex A8 CPU
High precision temperature-compensated real time clock
Linux operating system
10-100 Auto-MDIX Ethernet
Serial communication ports RS485
1 internal relay 1A@32Vdc
1 digital inputs
WiFi / BLE 5.0
PoE Power supply or 9-36 Vdc with ext, adapter
Download dima
UMTS 4G Usb dongle
UMTS | HSPA+ 5.76 / 21.0
Penta - band
Build-in antenna on board SMA male connector
possibility of external antenna on SMA male connector
On board SIM connector
On board network status LED
Controll access unit Cbox-3
LCD 144 x 32 Display with white ledback-light
Tactile keyboard with 15 keys
Monotone buzzer
DDR3 32bits 1Gbyte
800MHz 2 x CortexA8 CPU
High precision temperature-compensated real time clock
Linux operating system
10-100 Auto-MDIX Ethernet
Three serial communication ports RS232/485
8 internal relays
8 digital inputs
2 x USB 2.0 Host
12 Vac/Vdc power supply voltage
External 12 Volt battery (build-in charger)
Polycarbonate/ABS housing
Dimension DIN(EN60715) 9 modules 159x91x62mm
Data-sheet
Remote rele unit Sbox-2I/O
12 Vac/Vdc power supply voltage
RS485 serial line
2 rele (with led)
2 Digital input (with led)
Speed and ID by DipSwitch
Dimension DIN(EN60715) 2 modules 36x91x62mm
Data-sheet
